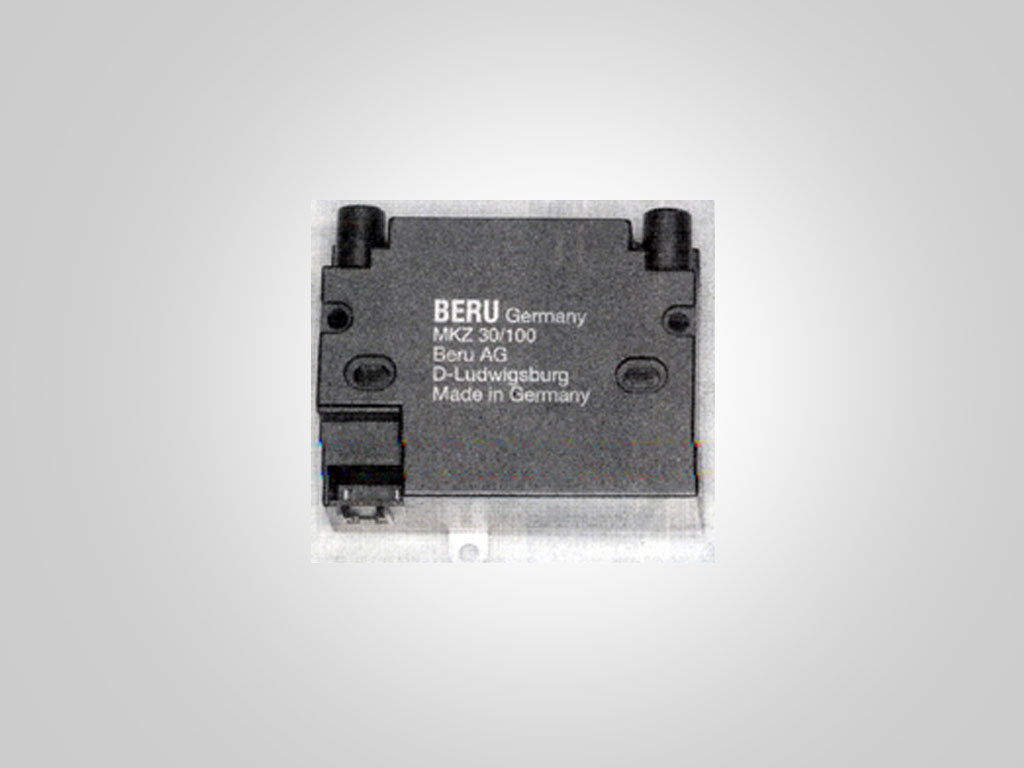

Technical Data - Ignition System MKZ 100 - ( Part No. 0 096 600 017 )
| Operating Voltage | 230 V ( -15 % + 10% ) 50/60 Hz |
| Primary Current | 0.22 A |
| Output | 50 VA |
| Connections | |
| Primary | 2 x flat plug 2.8 mm |
| Secondary | 2 x 4 mm drop-in pins |
| Ignition Voltage | 2 x 7.5 kV |
| Ignition Frequency | 25 / 30 Hz |
| Ignition Spark Energy | approx. 500 mJ |
| Duty Cycle | 100 % |
| Sparking distance | 1.5 - 3mm |
| Operating temperature | 0-60 0C |
| Fitting position | as required |
| Weight | 300 g/td> |
